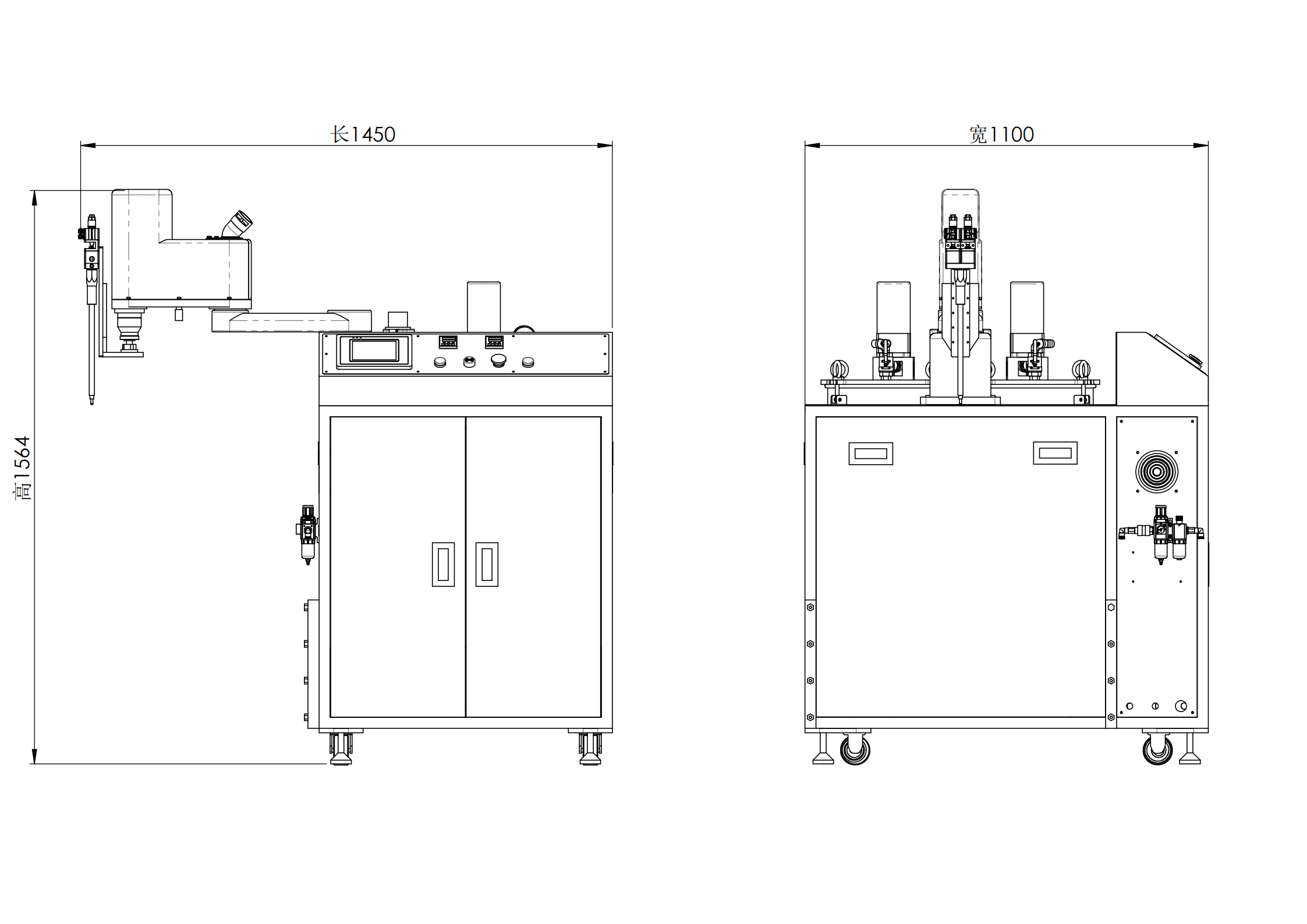

Glue-filling machine BW-SP0603-3030-ZZ-J

Features:

1. Air pressure detection function, when there is no air pressure or less than the set air pressure, the alarm is locked, and the air pressure is automatically lifted.

2. Double stepper motor drives A/B metering pump separately, the ratio only needs to be set digitally,100:100-100:10 can be.

3. Digital ettin of filling speed, glue amount and time is convenient and fast.

4. Double barrel design,A/B glue is stored separately to ensure that raw materials are stored for a long time without curing and deterioration.

5. Electronic liquid level sensor up and down the barrel, automatic warning of lack of material and full material, automatic lifting after feeding.

6. The mixing device at the top of the barrel prevents the precipitation of raw materials.

7. Barrel heating fnction, when the temperature is low or the raw material is thick, the barrel can be heated to make the dilution flow of the raw material and the mixing effect more ideal.

8. Mixing valve mixing (dynamic or static), mixing evenly, fully, no wire drawing, no dripping.

9. Anti-curing function, when the equipment is powered on, the equipment will automatically discharge the glue within the set time to prevent the water in the mixing tube from curing.

10. Valve automatic cleaning function, just need to pressure the cleaning bucket and click the touch screen switch, a few seconds the equipment can be automatically cleaned.

11. Touch screen and PLC system control, Chinese (Chinese and English can be switched) operation interface, anti-dull simple operation program design, simple operation.

12. Can be single machine or with automated assembly line, production line, manipulator, horizontal joint robot, joint robot and other joint machine.
