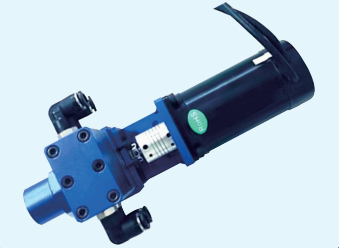

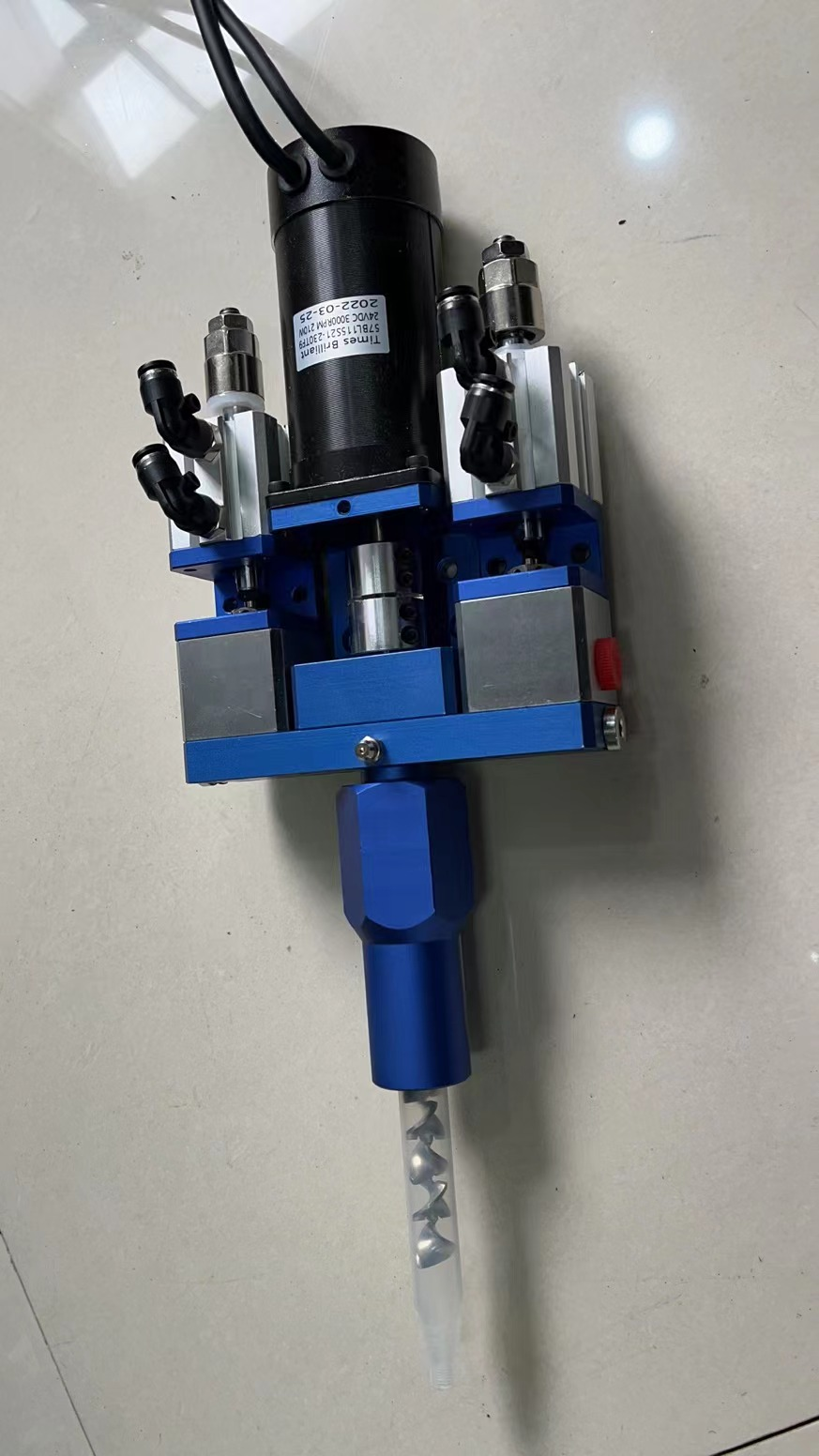

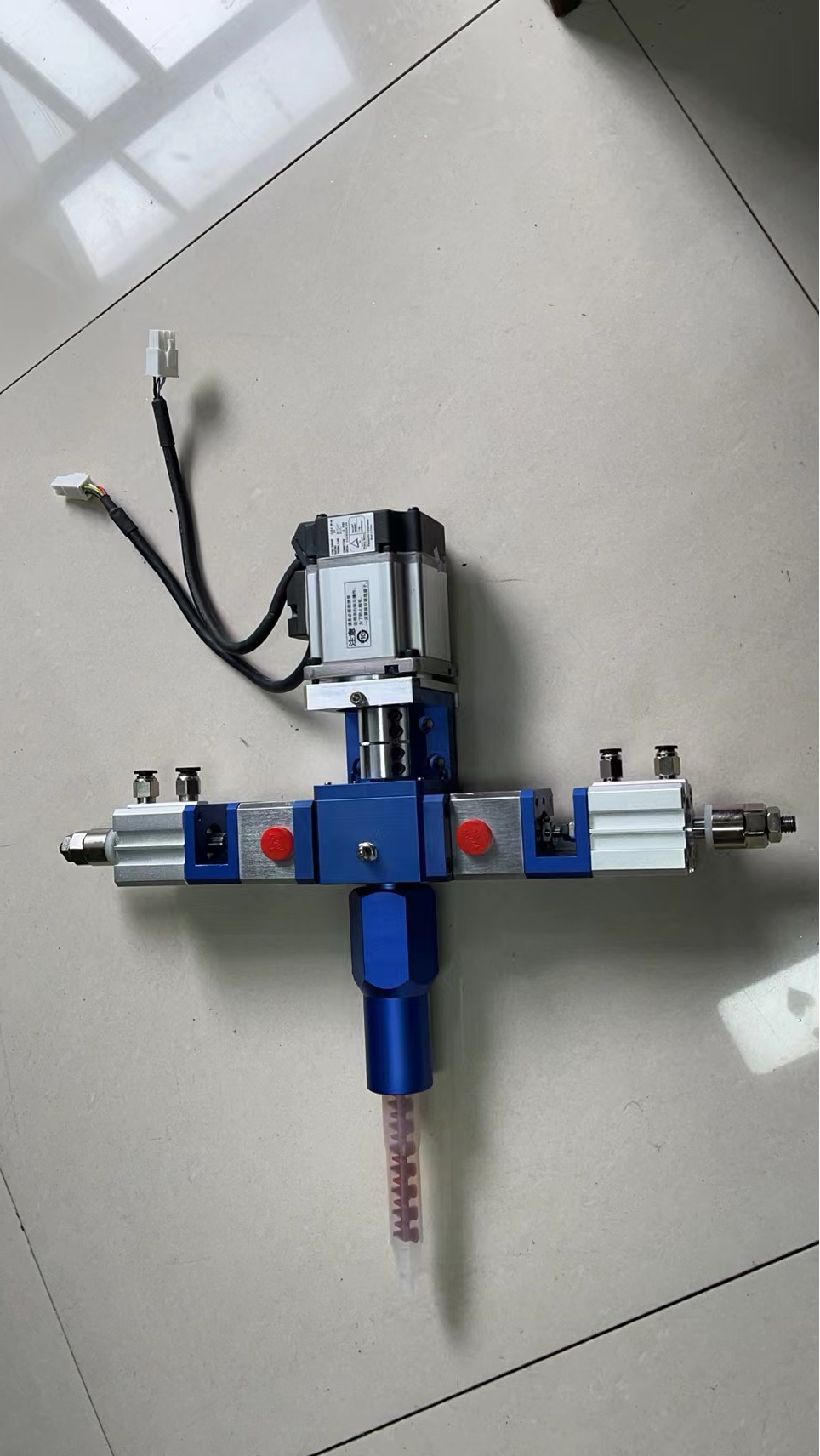

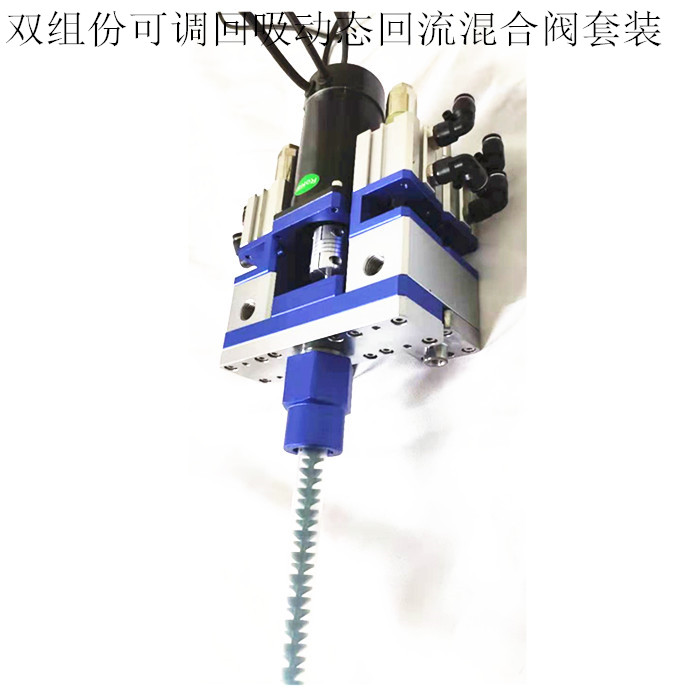

Two-component dynamic mixing valve

Features:

1. for A, B two-component automation equipment application, overall corrosion resistance.

2. high precision, small size, no glue, self-brought suction function.

3. air and glue are completely separated, easy to maintain, long service life.

4. Material: 45#, aluminum alloy, fluorine rubber, PTFE.

5. control mode: five three-way solenoid valve.

6. Operating air pressure: 0.3-0.8Mpa.

7. Operation speed: <500/min.

8. mixing speed: >3000/min.

9. Viscosity range: 1-30000cps.

10. working temperature: <100°.
